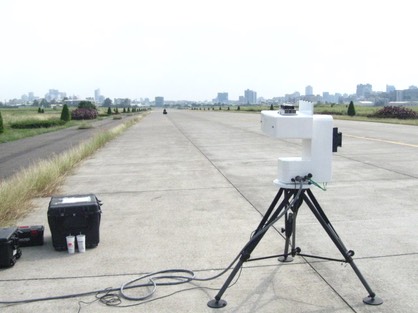

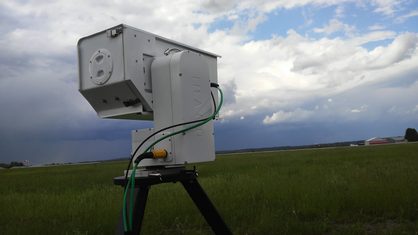

The IMBQ-ATOL offers the performance of the IMBQ-STND in a lightweight package similar in size to the IMBQ-LC. It is ideal for clients who need a smaller pan/tilt without sacrificing performance or accuracy.
Tracking Mount Specifications
| Description | Performance |
|---|---|
| Payload Mass, Maximum | 100 kg |
| Positioner Mass | 25 kg |
| IMBQ Accuracy | 36 arcsec |
| Encoder Resolution | 1,000,000 counts/rev |
| Azimuth Range | ±360° |
| Elevation Range | -20° to +90° (depending on payload) |
| Max. Angular Rate | 90°/s |
| Max. Angular Acceleration | 180°/s² |
| Finish | White Powder Coat |
| Sealing | IP65 |
