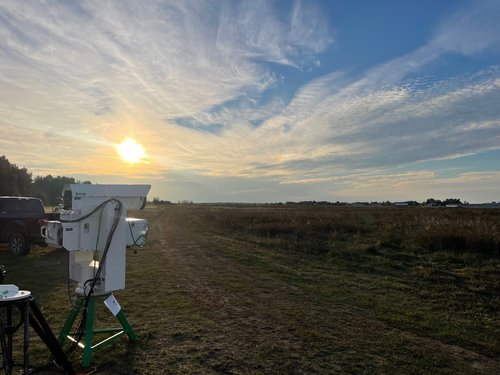

The IMBQ-HP-200-HA is the high-precision variant of IMAGO's HP-200 tracking pedestal, configured with the optional 23-bit inductive encoder kit. This upgrade delivers 7-arcsecond encoder accuracy and 0.13-arcsecond resolution (0.000035°) — enabling 10-arcsecond overall pointing accuracy for the most demanding measurement applications.
In all other respects the HP-200-HA shares the same rugged aluminium chassis, 200 kg rated payload capacity, IP65 sealing, and 90°/s tracking dynamics as the standard IMBQ-HP-200. Optional INS integration is available for mobile or shipboard platforms. Payload derating of 50% applies when mounted on a moving platform.
Tracking Mount Specifications
| Description | Performance |
|---|---|
| Overall Pointing Accuracy | 10 arcsec |
| Encoder Resolution (standard) | 1,280,000 counts/rev (13 arcsec) |
| Encoder Kit (HA option) | 23-bit inductive digital: 7 arcsec accuracy, 0.13 arcsec resolution |
| Encoder Type | Optical, digital (standard); Inductive (HA option) |
| Payload Mass, Rated | 200 kg (50% derating on moving platform) |
| Payload Mass, Maximum | 250 kg (reduced dynamics) |
| Positioner Mass | 120 kg (configuration dependent) |
| Azimuth Range | ±360° (optional N×360°) |
| Elevation Range | -20° to +180° (configuration dependent) |
| Max. Angular Rate | 90°/s (min. 0.01°/s) |
| Max. Angular Acceleration | 120°/s² |
| Sealing | IP65 |
| Temperature Range, Operational | -20°C to +50°C |
| Temperature Range, Storage | -20°C to +70°C |
| Humidity | 0 to 95%, non-condensing |
| Enclosure Heater | 100W (thermostatically controlled) |
| Environment | Terrestrial / Marine |
| Finish | White Powder Coat |
| Power Supply | 120 / 220 / 240 VAC, 50/60 Hz |
| Power Consumption | Typical 500W / Peak 2500W |
| Mounting | Tripod, Trailer, or Pedestal |
| Head Dimensions (H × W × D) | 96 cm × 103 cm × 38 cm |
| Service Life | 20+ years |
Rugged Reliability
The IMBQ-HP-200-HA shares the same rugged construction as the standard HP-200. The pedestal is rated IP65, constructed from precision-machined aluminium with a white powder coat finish. No regular maintenance is required other than cleaning, and the system is designed for 20+ years of continuous field deployment.
The 23-bit inductive encoder kit used in the HP variant is rated IP67, ensuring long-term reliable measurement performance even in harsh outdoor conditions. Optional INS integration is available for shipboard or vehicle-mounted applications.
